Industrial printheads FUJIFILM

SAMBA

Printhead DIMATIX FUJIFILM SAMBA G3L

Cabezal FUJIFILM SAMBA G3L

  • Compatible jetting fluids: UV-curable, latex, solvent, aqueous and others
  • Number of addressable Jets per module: 2048
  • Print width: 43 mm
  • Firing Frequency: over 100 KHz
  • Native Drop Size: 2.4 pico liters
  • Largest Drop Size; 10 pico liters
  • Nominal fluid viscosity: 4-8 cPs
  • Number of inks: 1
  • Native resolution: 1200 DPI

Electronic card DIMATIX FUJIFILM SAMBA G3L

TARJETA ELECTRÓNICA P&T SET FUJIFILM SAMBA

ELECTRONIC CARD P&T SET FUJIFILM SAMBA

Printhead DIMATIX FUJIFILM SAMBA G5L

Cabezal FUJIFILM SAMBA G5L

  • Compatible jetting fluids: Latex, solvent, aqueous and others
  • Number of addressable Jets per module: 2048
  • Print width: 43 mm
  • Firing Frequency: over 100 KHz
  • Native Drop Size: 3.5 pico liters
  • Largest Drop Size; 13 pico liters
  • Nominal fluid viscosity: 5-9 cPs
  • Number of inks: 1
  • Native resolution: 1200 DPI

Electronic card DIMATIX FUJIFILM SAMBA G5L

TARJETA ELECTRÓNICA P&T SET FUJIFILM SAMBA

ELECTRONIC CARD P&T SET DIMATIX FUJIFILM SAMBA

DIMATIX STARFIRE

Printhead DIMATIX StarFire SG1024/XSC

Cabezal DIMATIX StarFire SG1024/XSC

  • Compatible jetting fluids: Oil based ceramic inks
  • Number of addressable Jets per module: 1024
  • Print width: 64.96 mm
  • Firing Frequency: up to 50 KHz
  • Dimensions (Width * Height * Length): 40x86x126 mm
  • Net weight:
  • Native Drop Size: 6 pico liters
  • Largest Drop Size; 20 pico liters
  • Nominal fluid viscosity: 8-20 cP (10-14 cP recommended)
  • Grayscale: YES (definable by the user)
  • Number of inks: 1
  • Native resolution: 400 DPI
  • Recirculation: YES (using REDIJET)

Electronic card DIMATIX StarFire SG1024/XSC

ELECTRONIC CARD P&T SET DIMATIX SF

ELECTRONIC CARD P&T SET DIMATIX SF

Printhead DIMATIX StarFire SG1024/SC

Cabezal DIMATIX StarFire SG1024/XSC

  • Compatible jetting fluids: Oil based ceramic inks
  • Number of addressable Jets per module: 1024
  • Print width: 64.96 mm
  • Firing Frequency: up to 50 KHz
  • Dimensions (Width * Height * Length): 40x86x126 mm
  • Net weight:
  • Native Drop Size: 12 pico liters
  • Largest Drop Size; 33 pico liters
  • Nominal fluid viscosity: 8-20 cP (10-14 cP recommended)
  • Grayscale: YES (definable by the user)
  • Number of inks: 1
  • Native resolution: 400 DPI
  • Recirculation: YES (using REDIJET)

Electronic card DIMATIX StarFire SG1024/SC

ELECTRONIC CARD P&T SET DIMATIX SF

ELECTRONIC CARD P&T SET DIMATIX SF

Printhead DIMATIX StarFire SG1024/MC

Cabezal DIMATIX StarFire SG1024/XSC

  • Compatible jetting fluids: Oil based ceramic inks
  • Number of addressable Jets per module: 1024
  • Print width: 64.96 mm
  • Firing Frequency: up to 35 KHz
  • Dimensions (Width * Height * Length): 40x86x126 mm
  • Net weight:
  • Native Drop Size: 26 pico liters
  • Largest Drop Size; 65 pico liters
  • Nominal fluid viscosity: 8-20 cP (10-14 cP recommended)
  • Grayscale: YES (definable by the user)
  • Number of inks: 1
  • Native resolution: 400 DPI
  • Recirculation: YES (using REDIJET)

Electronic card DIMATIX StarFire SG1024/MC

ELECTRONIC CARD P&T SET DIMATIX SF

ELECTRONIC CARD P&T SET DIMATIX SF

Printhead DIMATIX StarFire SG1024/LC

Cabezal DIMATIX StarFire SG1024/XSC

  • Compatible jetting fluids: Oil based ceramic inks
  • Number of addressable Jets per module: 1024
  • Print width: 64.96 mm
  • Firing Frequency: up to 20 KHz
  • Dimensions (Width * Height * Length): 40x86x126 mm
  • Net weight:
  • Native Drop Size: 72 pico liters
  • Largest Drop Size; 200 pico liters
  • Nominal fluid viscosity: 8-20 cP (10-14 cP recommended)
  • Grayscale: YES (definable by the user)
  • Number of inks: 1
  • Native resolution: 400 DPI
  • Recirculation: YES (using REDIJET)

Electronic card DIMATIX StarFire SG1024/LC

ELECTRONIC CARD P&T SET DIMATIX SF

ELECTRONIC CARD P&T SET DIMATIX SF

Printhead DIMATIX StarFire SG1024/SA 2C

  • Compatible jetting fluids: UV-curable, organic solvents, and aqueous inks
  • Number of addressable Jets per module: 1024
  • Print width: 64.96 mm
  • Firing Frequency: up to 50 KHz
  • Dimensions (Width * Height * Length): 40x92x128 mm
  • Net weight:
  • Native Drop Size: 12 pico liters
  • Largest Drop Size; 33 pico liters
  • Nominal fluid viscosity: 8-20 cP (10-14 cP recommended)
  • Grayscale: YES (definable by the user)
  • Number of inks: 2
  • Native resolution: 200 DPI per color
  • Recirculation: YES (using REDIJET)

Electronic card DIMATIX StarFire SG1024/SA 2C

ELECTRONIC CARD P&T SET DIMATIX SF

ELECTRONIC CARD P&T SET DIMATIX SF

Printhead DIMATIX StarFire SG1024/MA 2C

  • Compatible jetting fluids: UV-curable, organic solvents, and aqueous inks
  • Number of addressable Jets per module: 1024
  • Print width: 64.96 mm
  • Firing Frequency: up to 35 KHz
  • Dimensions (Width * Height * Length): 40x92x128 mm
  • Net weight:
  • Native Drop Size: 30 pico liters
  • Largest Drop Size; 80 pico liters
  • Nominal fluid viscosity: 8-20 cP (10-14 cP recommended)
  • Grayscale: YES (definable by the user)
  • Number of inks: 2
  • Native resolution: 200 DPI per color
  • Recirculation: YES (using REDIJET)

Electronic card DIMATIX StarFire SG1024/MA 2C

ELECTRONIC CARD P&T SET DIMATIX SF

ELECTRONIC CARD P&T SET DIMATIX SF

Printhead DIMATIX StarFire SG1024/LA 2Ci

  • Compatible jetting fluids: UV-curable, organic solvents, and aqueous inks
  • Number of addressable Jets per module: 1024
  • Print width: 64.96 mm
  • Firing Frequency: up to 20 KHz
  • Dimensions (Width * Height * Length): 40x92x128 mm
  • Net weight:
  • Native Drop Size: 80 pico liters
  • Largest Drop Size; 200 pico liters
  • Nominal fluid viscosity: 8-20 cP (10-14 cP recommended)
  • Grayscale: YES (definable by the user)
  • Number of inks: 2
  • Native resolution: 200 DPI per color and interfaced for a 400 dpi swath
  • Recirculation: YES (using REDIJET)

Electronic card DIMATIX StarFire SG1024/LA 2Ci

ELECTRONIC CARD P&T SET DIMATIX SF

ELECTRONIC CARD P&T SET DIMATIX SF

Printhead DIMATIX StarFire SG1024/XSA

  • Compatible jetting fluids: UV-curable, organic solvents, and aqueous inks
  • Number of addressable Jets per module: 1024
  • Print width: 64.96 mm
  • Firing Frequency: up to 50 KHz
  • Dimensions (Width * Height * Length): 40x86x128 mm
  • Net weight:
  • Native Drop Size: 6 pico liters
  • Largest Drop Size; 20 pico liters
  • Nominal fluid viscosity: 8-20 cP (10-14 cP recommended)
  • Grayscale: YES (definable by the user)
  • Number of inks: 1
  • Native resolution: 400 DPI
  • Recirculation: YES (using REDIJET)

Electronic card DIMATIX StarFire SG1024/XSA

ELECTRONIC CARD P&T SET DIMATIX SF

ELECTRONIC CARD P&T SET DIMATIX SF

Printhead DIMATIX StarFire SG1024/SA

  • Compatible jetting fluids: UV-curable, organic solvents, and aqueous inks
  • Number of addressable Jets per module: 1024
  • Print width: 64.96 mm
  • Firing Frequency: up to 50 KHz
  • Dimensions (Width * Height * Length): 40x86x128 mm
  • Net weight:
  • Native Drop Size: 12 pico liters
  • Largest Drop Size; 33 pico liters
  • Nominal fluid viscosity: 8-20 cP (10-14 cP recommended)
  • Grayscale: YES (definable by the user)
  • Number of inks: 1
  • Native resolution: 400 DPI
  • Recirculation: YES (using REDIJET)

Electronic card DIMATIX StarFire SG1024/SA

ELECTRONIC CARD P&T SET DIMATIX SF

ELECTRONIC CARD P&T SET DIMATIX SF

Printhead DIMATIX StarFire SG1024/MA

  • Compatible jetting fluids: UV-curable, organic solvents, and aqueous inks
  • Number of addressable Jets per module: 1024
  • Print width: 64.96 mm
  • Firing Frequency: up to 35 KHz
  • Dimensions (Width * Height * Length): 40x86x128 mm
  • Net weight:
  • Native Drop Size: 30 pico liters
  • Largest Drop Size; 80 pico liters
  • Nominal fluid viscosity: 8-20 cP (10-14 cP recommended)
  • Grayscale: YES (definable by the user)
  • Number of inks: 1
  • Native resolution: 400 DPI
  • Recirculation: YES (using REDIJET)

Electronic card DIMATIX StarFire SG1024/MA

ELECTRONIC CARD P&T SET DIMATIX SF

ELECTRONIC CARD P&T SET DIMATIX SF

Printhead DIMATIX StarFire SG1024/LA

  • Compatible jetting fluids: UV-curable, organic solvents, and aqueous inks
  • Number of addressable Jets per module: 1024
  • Print width: 64.96 mm
  • Firing Frequency: up to 20 KHz
  • Dimensions (Width * Height * Length): 40x86x128 mm
  • Net weight:
  • Native Drop Size: 80 pico liters
  • Largest Drop Size; 200 pico liters
  • Nominal fluid viscosity: 8-20 cP (10-14 cP recommended)
  • Grayscale: YES (definable by the user)
  • Number of inks: 1
  • Native resolution: 400 DPI
  • Recirculation: YES (using REDIJET)

Electronic card DIMATIX StarFire SG1024/LA

ELECTRONIC CARD P&T SET DIMATIX SF

ELECTRONIC CARD P&T SET DIMATIX SF

Printhead DIMATIX StarFire SG1024/AQ LH

  • Compatible jetting fluids:: Water based (ceramic inks)
  • Number of addressable Jets per module: 1024
  • Printing width: 64.96 millimeters
  • Firing frequency: up to 20 KHz
  • Dimensions (Width*Height*Length): 40x86x126 millimeters
  • Net weight:
  • Native Drop Size: 80 pico liters
  • Largest Drop Size 200 pico liters
  • Nominal fluid viscosity: 10-11 mPa*s
  • Grayscale: YES (user-definable)
  • Number of inks: 1
  • Native resolution: 400 DPI
  • Recirculation: YES (using REDIJET)

Electronic card DIMATIX StarFire SG1024/AQ LH

ELECTRONIC CARD P&T SET DIMATIX SF

ELECTRONIC CARD P&T SET DIMATIX SF

Printhead DIMATIX StarFire SG1024/AQ MH

  • Compatible jetting fluids:: Water based (ceramic inks)
  • Number of addressable Jets per module: 1024
  • Printing width: 64.96 millimeters
  • Firing frequency: up to 30 KHz
  • Dimensions (Width*Height*Length): 40x86x126 millimeters
  • Net weight:
  • Native Drop Size: 12 pico liters
  • Largest Drop Size 33 pico liters
  • Nominal fluid viscosity: 10-11 mPa*s
  • Grayscale: YES (user-definable)
  • Number of inks: 1
  • Native resolution: 400 DPI
  • Recirculation: YES (using REDIJET)

Electronic card DIMATIX StarFire SG1024/AQ MH

ELECTRONIC CARD P&T SET DIMATIX SF

ELECTRONIC CARD P&T SET DIMATIX SF

Printhead DIMATIX StarFire SG600

  • Compatible jetting fluids:: Water based, solvent, UV
  • Number of addressable Jets per module: 1536
  • Printing width: 64.98 millimeters
  • Firing frequency: up to 50 KHz
  • Dimensions (Width*Height*Length): 55x101x126 millimeters
  • Net weight:
  • Native Drop Size: 12 pico liters
  • Largest Drop Size 33 pico liters
  • Nominal fluid viscosity: 8-20 mPa*s (10-14 mPa*s recommended)
  • Grayscale: YES (user-definable)
  • Number of inks: 1
  • Native resolution: 600 DPI
  • Recirculation: YES (using REDIJET)

Electronic card DIMATIX StarFire SG600

TARJETA ELECTRÓNICA P&T SET DIMATIX StarFire SG600

ELECTRONIC CARD P&T SET DIMATIX StarFire SG600

SAPPHIRE

Printhead DIMATIX SAPPHIRE QS-256-10 AAA

Printhead DIMATIX SAPPHIRE QS-256-10 AAA

  • Number of addressable Jets per module: 256
  • Print width: 64.77 mm
  • Native resolution: 100 DPI
  • Native drop size: 10 Pico liter
  • Largest drop size: 30 Pico liter
  • Firing frequency : 50 kHz
  • Inkjet operating temperature range: Up to 90° Centigrade [194° F]
  • Nominal fluid viscosity: 8 -20 centipoise (10 -14 centipoise recommended)
  • Compatible jetting fluids: UV-cureable, organic solvents, aqueous
  • Nozzle Plate technology: Silicon
  • Dimensions (Width * Height * Length): 8.01x74x115 mm

Electronic card DIMATIX SAPPHIRE QS-256-10 AAA

ELECTRONIC CARD P&T SET DIMATIX SAPPHIRE QS-256-10 AAA

ELECTRONIC CARD P&T SET DIMATIX SAPPHIRE QS-256-10 AAA

Printhead DIMATIX SAPPHIRE QS-256-14 AAA

Printhead DIMATIX SAPPHIRE QS-256-14 AAA

  • Number of addressable Jets per module: 256
  • Print width: 64.77 mm
  • Native resolution: 100 DPI
  • Native drop size: 14 Pico liter
  • Largest drop size: 42 Pico liter
  • Firing frequency: 50 kHz
  • Inkjet operating temperature range: Up to 90° Centigrade [194° F]
  • Nominal fluid viscosity: 8 -20 centipoise (10 -14 centipoise recommended)
  • Compatible jetting fluids: UV-cureable, organic solvents, aqueous
  • Nozzle Plate technology: Silicon
  • Dimensions (Width * Height * Length): 8.01x74x115 mm

Electronic card DIMATIX SAPPHIRE QS-256-14 AAA

ELECTRONIC CARD P&T SET DIMATIX SAPPHIRE QS-256-14 AAA

ELECTRONIC CARD P&T SET DIMATIX SAPPHIRE QS-256-14 AAA

Printhead DIMATIX SAPPHIRE QS-256-30 AAA

Printhead DIMATIX SAPPHIRE QS-256-30 AAA

  • Number of addressable Jets per module: 256
  • Print width: 64.77 mm
  • Native resolution: 100 DPI
  • Native drop size: 30 Pico liter
  • Largest drop size: 80 Pico liter
  • Firing frequency: 33 kHz
  • Inkjet operating temperature range: Up to 90° Centigrade [194° F]
  • Nominal fluid viscosity: 8 -20 centipoise (10 -14 centipoise recommended)
  • Compatible jetting fluids: UV-cureable, organic solvents, aqueous
  • Nozzle Plate technology: Silicon
  • Dimensions (Width * Height * Length): 8.01x74x115 mm

Electronic card DIMATIX SAPPHIRE QS-256-14 AAA

ELECTRONIC CARD P&T SET DIMATIX SAPPHIRE QS-256-14 AAA

ELECTRONIC CARD P&T SET DIMATIX SAPPHIRE QS-256-14 AAA

Printhead DIMATIX SAPPHIRE QS-256-80 AAA

Printhead DIMATIX SAPPHIRE QS-256-80 AAA

  • Number of addressable Jets per module: 256
  • Print width: 64.77 mm
  • Native resolution: 100 DPI
  • Native drop size: 80 Pico liter
  • Largest drop size: 200 Pico liter
  • Firing frequency: 20 kHz
  • Inkjet operating temperature range: Up to 90° Centigrade [194° F]
  • Nominal fluid viscosity: 8 -20 centipoise (10 -14 centipoise recommended)
  • Compatible jetting fluids: UV-cureable, organic solvents, aqueous
  • Nozzle Plate technology: Silicon
  • Dimensions (Width * Height * Length): 8.01x74x115 mm

Electronic card DIMATIX SAPPHIRE QS-256-14 AAA

ELECTRONIC CARD P&T SET DIMATIX SAPPHIRE QS-256-14 AAA

ELECTRONIC CARD P&T SET DIMATIX SAPPHIRE QS-256-14 AAA

EMERALD

Printhead DIMATIX EMERALD QE-256/30

  • Compatible jetting fluids:: Water based, UV, solvent inks
  • Number of addressable Jets per module: 256
  • Printing width: 64.77 millimeters
  • Firing frequency: up to 33 KHz
  • Dimensions (Width*Height*Length): 8,1x64x108 millimeters
  • Net weight:
  • Native Drop Size: 30 pico liters
  • Largest Drop Size 80 pico liters
  • Nominal fluid viscosity: 8-20 mPa*s (10-14 mPa*s recommend)
  • Number of inks: 1
  • Native resolution: 100 DPI

Electronic card DIMATIX EMERALD QE-256/30

ELECTRONIC CARD P&T SET DIMATIX EMERALD QE-256/30

ELECTRONIC CARD P&T SET DIMATIX EMERALD QE-256/30

Printhead DIMATIX EMERALD QE-256/80

  • Compatible jetting fluids:: Water based, UV, solvent inks
  • Number of addressable Jets per module: 256
  • Printing width: 64.77 millimeters
  • Firing frequency: up to 20 KHz
  • Dimensions (Width*Height*Length): 8,1x64x108 millimeters
  • Net weight:
  • Native Drop Size: 80 pico liters
  • Largest Drop Size 200 pico liters
  • Nominal fluid viscosity: 8-20 mPa*s (10-14 mPa*s recommend)
  • Number of inks: 1
  • Native resolution: 100 DPI

Electronic card DIMATIX EMERALD QE-256/80

ELECTRONIC CARD P&T SET DIMATIX EMERALD QE-256/80

ELECTRONIC CARD P&T SET DIMATIX EMERALD QE-256/80

POLARIS

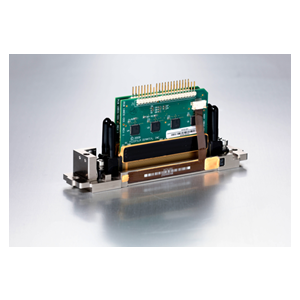

Printhead DIMATIX POLARIS PQ-512/15

  • Compatible jetting fluids: Water base, UV, solvent inks
  • Number of addressable Jets per module: 512
  • Printing width: 64.90 millimeters
  • Firing frequency: up to 25/40 KHz
  • Dimensions (Width*Height*Length): 29.5x64x150  millimeters
  • Net weight: 160 grams
  • Native Drop Size: 15 pico liters
  • Largest Drop Size 30 pico liters
  • Nominal fluid viscosity: 8-20 mPa*s (10-14 mPa*s recommend)
  • Number of inks: 2
  • Native resolution: 200 DPI

Electronic card DIMATIX POLARIS PQ-512/15

ELECTRONIC CARD P&T SET DIMATIX POLARIS PQ-512/15

ELECTRONIC CARD P&T SET DIMATIX POLARIS PQ-512/15

Printhead DIMATIX POLARIS PQ-512/35

  • Compatible jetting fluids: Water base, UV, solvent inks
  • Number of addressable Jets per module: 512
  • Printing width: 64.90 millimeters
  • Firing frequency: up to 25/40 KHz
  • Dimensions (Width*Height*Length): 29.5x64x150  millimeters
  • Net weight: 160 grams
  • Native Drop Size: 35 pico liters
  • Largest Drop Size 80 pico liters
  • Nominal fluid viscosity: 8–20 mPa*s (10-14 mPa*s recommend)
  • Number of inks: 2
  • Native resolution: 200 DPI

Electronic card DIMATIX POLARIS PQ-512/35

ELECTRONIC CARD P&T SET DIMATIX POLARIS PQ-512/35

ELECTRONIC CARD P&T SET DIMATIX POLARIS PQ-512/35

Printhead DIMATIX POLARIS PQ-512/85

  • Compatible jetting fluids: Water base, UV, solvent inks
  • Number of addressable Jets per module: 512
  • Printing width: 64.90 millimeters
  • Firing frequency: up to 25/40 KHz
  • Dimensions (Width*Height*Length): 29.5x64x150  millimeters
  • Net weight: 160 grams
  • Native Drop Size: 35 pico liters
  • Largest Drop Size 80 pico liters
  • Nominal fluid viscosity: 8-20 mPa*s (10-14 mPa*s recommend)
  • Number of inks: 2
  • Native resolution: 200 DPI

Electronic card DIMATIX POLARIS PQ-512/85

ELECTRONIC CARD P&T SET DIMATIX POLARIS PQ-512/85

ELECTRONIC CARD P&T SET DIMATIX POLARIS PQ-512/85

S TYPE

Printhead DIMATIX SE-128 AA

  • Compatible jetting fluids: Water base, UV, solvent inks
  • Number of addressable Jets per module: 128
  • Printing width: 83 millimeters
  • Firing frequency: up to 40 KHzDimensions (Width*Height*Length): 5x104x102  millimeters
  • Net weight: 130 grams
  • Native Drop Size: 28 pico liters
  • Nominal fluid viscosity: 8–20 mPa*s (10-14 mPa*s recommend)
  • Number of inks: 1
  • Native resolution: —

Electronic card DIMATIX SE-128 AA

ELECTRONIC CARD P&T SET DIMATIX SE-128 AA
ELECTRONIC CARD P&T SET DIMATIX SE-128 AA

Printhead DIMATIX SM-128 AA

  • Compatible jetting fluids: UV, solvent inks
  • Number of addressable Jets per module: 128
  • Printing width: 83 millimeters
  • Firing frequency: up to 20 KHz
  • Dimensions (Width*Height*Length): 5x104x102  millimeters
  • Net weight:
  • Native Drop Size: 40/55 pico liters
  • Nominal fluid viscosity: 8–20 mPa*s (10-14 mPa*s recommend)
  • Number of inks: 1
  • Native resolution: —

Electronic card DIMATIX SM-128 AA

ELECTRONIC CARD P&T SET DIMATIX SE-128 AA
ELECTRONIC CARD P&T SET DIMATIX SM-128 AA

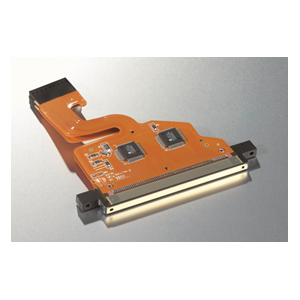

Printhead DIMATIX SL-128 AA

  • Compatible jetting fluids: UV, solvent inks
  • Number of addressable Jets per module: 128
  • Printing width: 83 millimeters
  • Firing frequency: up to 30 KHz
  • Dimensions (Width*Height*Length): 5x104x102  millimeters
  • Net weight:
  • Native Drop Size: 80 pico liters
  • Nominal fluid viscosity: 8–20 mPa*s (10-14 mPa*s recommend)
  • Number of inks: 1
  • Native resolution: —

Electronic card DIMATIX SL-128 AA

ELECTRONIC CARD P&T SET DIMATIX SE-128 AA
ELECTRONIC CARD P&T SET DIMATIX SL-128 AA

GALAXY

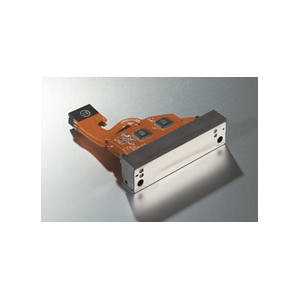

Printhead DIMATIX GALAXY JA 256/30 AAA

  • Compatible jetting fluids: Water base, UV, solvent inks
  • Number of addressable Jets per module: 256
  • Printing width: 64.80 millimeters
  • Firing frequency: up to 25/30 KHz
  • Dimensions (Width*Height*Length): 27.5x102x102  millimeters
  • Net weight: 130 grams
  • Native Drop Size: 28 pico liters
  • Nominal fluid viscosity: 8–20 mPa*s (10-14 mPa*s recommend)
  • Number of inks: 1
  • Native resolution: —

Electronic card DIMATIX GALAXY JA 256/30 AAA

ELECTRONIC CARD P&T SET DIMATIX GALAXY JA 256/50 AAA
ELECTRONIC CARD P&T SET DIMATIX GALAXY JA 256/30 AAA

Printhead DIMATIX GALAXY JA 256/50 AAA

  • Compatible jetting fluids: Water base, UV, solvent inks
  • Number of addressable Jets per module: 256
  • Printing width: 64.80 millimeters
  • Firing frequency: up to 20 KHz
  • Dimensions (Width*Height*Length): 27.5x102x102  millimeters
  • Net weight: 130 grams
  • Native Drop Size: 50 pico liters
  • Nominal fluid viscosity: 8–20 mPa*s (10-14 mPa*s recommend)
  • Number of inks: 1
  • Native resolution: —

Electronic card DIMATIX GALAXY JA 256/50 AAA

ELECTRONIC CARD P&T SET DIMATIX GALAXY JA 256/50 AAA
ELECTRONIC CARD P&T SET DIMATIX GALAXY JA 256/50 AAA

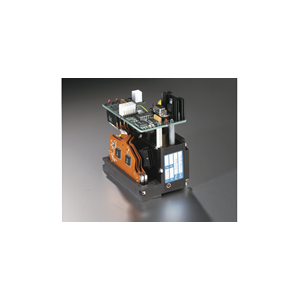

Printhead DIMATIX GALAXY PH 256/30 AAA

Cabezal-DIMATIX-GALAXY-PH-1

  • Compatible jetting fluids: Water base, UV, solvent inks
  • Number of addressable Jets per module: 256
  • Printing width: 64.8 millimeters
  • Firing frequency: up to 20 KHz
  • Dimensions (Width*Height*Length): 65x111,4x102  millimeters
  • Net weight: 640 grams
  • Native Drop Size: 28 pico liters
  • Nominal fluid viscosity: 8–20 mPa*s (10-14 mPa*s recommend)
  • Number of inks: 1
  • Native resolution: —

Electronic card DIMATIX GALAXY PH 256/30 AAA

ELECTRONIC CARD P&T SET DIMATIX GALAXY JA 256/50 AAA
ELECTRONIC CARD P&T SET DIMATIX GALAXY PH 256/30 AAA

Printhead DIMATIX GALAXY PH 256/30 HM

Cabezal-DIMATIX-GALAXY-PH-1

  • Compatible jetting fluids: Hot melt
  • Number of addressable Jets per module: 256
  • Printing width: 64.8 millimeters
  • Firing frequency: up to 20 KHz
  • Dimensions (Width*Height*Length): 65x111,4x102  millimeters
  • Net weight: 640 grams
  • Native Drop Size: 28 pico liters
  • Nominal fluid viscosity: 8–20 mPa*s (10-14 mPa*s recommend)
  • Number of inks: 1
  • Native resolution: —

Electronic card DIMATIX GALAXY PH 256/30 HM

ELECTRONIC CARD P&T SET DIMATIX GALAXY JA 256/50 AAA
ELECTRONIC CARD P&T SET DIMATIX GALAXY PH 256/30 HM

Printhead DIMATIX GALAXY PH 256/50 AAA

Cabezal-DIMATIX-GALAXY-PH-1

  • Compatible jetting fluids: Water base, UV, solvent inks
  • Number of addressable Jets per module: 256
  • Printing width: 64.8 millimeters
  • Firing frequency: up to 20 KHz
  • Dimensions (Width*Height*Length): 65x111,4x102  millimeters
  • Net weight: 640 grams
  • Native Drop Size: 50 pico liters
  • Nominal fluid viscosity: 8–20 mPa*s (10-14 mPa*s recommend)
  • Number of inks: 1
  • Native resolution: —

Electronic card DIMATIX GALAXY PH 256/50 AAA

ELECTRONIC CARD P&T SET DIMATIX GALAXY JA 256/50 AAA
ELECTRONIC CARD P&T SET DIMATIX GALAXY PH 256/50 AAA

Printhead DIMATIX GALAXY PH 256/80 HM

Cabezal-DIMATIX-GALAXY-PH-1

  • Compatible jetting fluids: Hot melt
  • Number of addressable Jets per module: 256
  • Printing width: 64.8 millimeters
  • Firing frequency: up to 12 KHz
  • Dimensions (Width*Height*Length): 65x111,4x102  millimeters
  • Net weight: 640 grams
  • Native Drop Size: 80 pico liters
  • Nominal fluid viscosity: 8–20 mPa*s (10-14 mPa*s recommend)
  • Number of inks: 1
  • Native resolution: —

Electronic card DIMATIX GALAXY PH 256/80 HM

ELECTRONIC CARD P&T SET DIMATIX GALAXY JA 256/50 AAA
ELECTRONIC CARD P&T SET DIMATIX GALAXY PH 256/80 HM

NOVA

Cabezal DIMATIX NOVA JA 256/80 AAA

  • Compatible jetting fluids: Water base, UV, solvent inks
  • Number of addressable Jets per module: 256
  • Printing width: 64.80 millimeters
  • Firing frequency: up to 20 KHz
  • Dimensions (Width*Height*Length): 6.67×112.79×101.6 millimeters
  • Net weight: 130 grams
  • Native Drop Size: 75 pico liters
  • Nominal fluid viscosity: 8–20 mPa*s (10-14 mPa*s recommend)
  • Number of inks: 1
  • Native resolution: —

Electronic card DIMATIX NOVA JA 256/80 AAA

ELECTRONIC CARD P&T SET DIMATIX GALAXY JA 256/50 AAA
ELECTRONIC CARD P&T SET DIMATIX NOVA JA 256/80 AAA

Cabezal DIMATIX NOVA PH 256/80 AAA

  • Compatible jetting fluids: Water base, UV, solvent inks
  • Number of addressable Jets per module: 256
  • Printing width: 71.1 millimeters
  • Firing frequency: up to 20 KHz
  • Dimensions (Width*Height*Length): 65x125x102  millimeters
  • Net weight: 750 grams
  • Native Drop Size: 75 pico liters
  • Nominal fluid viscosity: 8–20 mPa*s (10-14 mPa*s recommend)
  • Number of inks: 1
  • Native resolution: —

Electronic card DIMATIX NOVA PH 256/80 AAA

ELECTRONIC CARD P&T SET DIMATIX GALAXY JA 256/50 AAA
ELECTRONIC CARD P&T SET DIMATIX NOVA PH 256/80 AAA

English
X

VIRTUAL DEMO CENTER

CONTACT US

TO SEE OUR MACHINES LIVE

FROM THE CHAIR OF YOUR OFFICE

 VIRTUAL DEMO CENTER

More information Cancel
