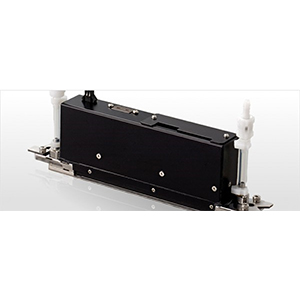

Printhead KYOCERA KJ4A-TA
- Compatible ink: UV
- Number of nozzles: 2,656
- Print width: 108.25 millimeters
- Standard resolution: 600 × 600 dots per inch
- Max. Drive Frequency: 20 KHz.
- Dimensions: (Width * Height * Length): 200x25x59.3 mm
- Net weight: 420 grams
- Maximum printing speed: 50 meters per minute
- Drop volumes: 6, 7, 11 and 14 pl.
- Optimum Ink Viscosity: 6 -7 mPa * s

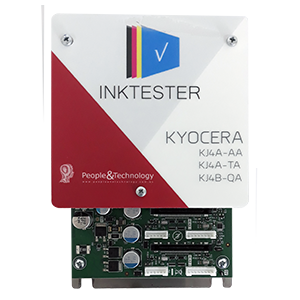

Electronic card KYOCERA KJ4A-AA-TA-QA
Electronic card for KYOCERA KJ4A-AA-TA-QA head
Printhead KYOCERA KJ4A-AA
- Compatible ink: UV
- Number of nozzles: 2,656
- Print width: 108.25 millimeters
- Standard resolution: 600 × 600 dots per inch
- Max. Drive Frequency: 20 KHz.
- Dimensions: (Width * Height * Length): 200x25x59.3 mm
- Net weight: 420 grams
- Maximum printing speed: 50 meters per minute
- Drop volumes: 3, 6, 13 pl.
- Optimum Ink Viscosity: 6 – 6.5 mPa * s
Electronic card KYOCERA KJ4A-AA-TA-QA
Electronic card for KYOCERA KJ4A-AA-TA-QA head

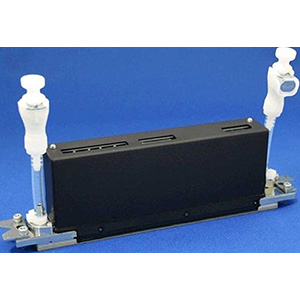

Printhead KYOCERA KJ4B-QA
- Compatible ink: Water
- Number of nozzles: 2,656
- Print width: 108.25 millimeters
- Standard resolution: 600 × 600 dots per inch
- Maximum Drive Frequency: 30 KHz.
- Dimensions: (Width * Height * Length): 200x25x59.3 mm
- Net weight: 420 grams
- Maximum printing speed: 75 meters per minute
- Drop volumes: 5, 7, 12 and 18 pL. 18pL is only available under no more than 20kHz Drive Frequency
- Optimum Ink Viscosity: 5 – 6 mPa * s
Electronic card KYOCERA KJ4B-AA-TA-QA
Electronic card KYOCERA KJ4B-AA-TA-QA head
Printhead KYOCERA KJ4A-300
- Compatible ink: UV
- Number of nozzles: 1.328 x 2 Channels
- Print width: 112.35 millimeters
- Standard resolution: 300 × 300 dots per inch
- Maximum Drive Frequency: 30 KHz.
- Dimensions: (Width * Height * Length): 200x36x61.4 mm
- Net weight: 540 grams
- Maximum printing speed: 152 meters per minute
- Drop volumes: 4, 6, 10 and 14 pL.
- Optimum Ink Viscosity: 7 – 7.5 mPa * s

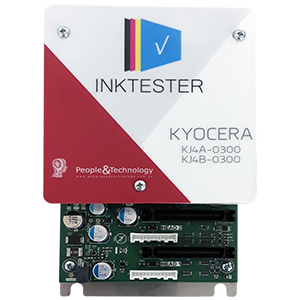

Electronic card KYOCERA KJ4A-300
Electronic card for KYOCERA KJ4A-300 head

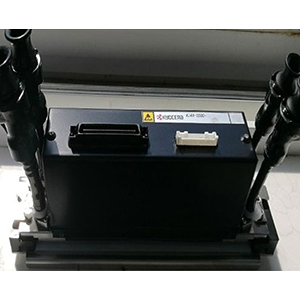

Printhead KYOCERA KJ4B-300
- Compatible ink: Water
- Number of nozzles: 1.328 x 2 Channels
- Print width: 112.35 millimeters
- Standard resolution: 300 × 300 dots per inch
- Maximum Drive Frequency: 30 KHz.
- Dimensions: (Width * Height * Length): 200x36x61.1 mm
- Net weight: 540 grams
- Maximum printing speed: 152 meters per minute
- Drop volumes: 5, 7, 12 and 18 pL. 18pL is only available under no more than 20kHz Drive Frequency
- Optimum Ink Viscosity: 5 – 6 mPa * s
- Two colors
Electronic card KYOCERA KJ4B-300
Electronic card for KYOCERA KJ4B-300 head

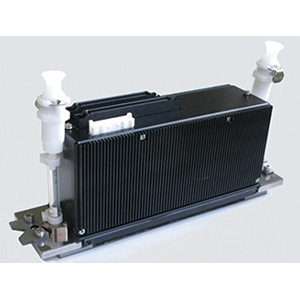

Printhead KYOCERA KJ4A-RH
- Compatible ink: UV
- Number of nozzles: 2,656
- Print width: 108.25 millimeters
- Standard resolution: 600 × 600 dots per inch
- Maximum Drive Frequency: 30 KHz.
- Dimensions: (Width * Height * Length): 200x30x61.2 mm
- Net weight: 438 grams
- Maximum printing speed: 75 meters per minute
- Drop volumes: 3, 7, 11 and 14 pL.
- Optimum Ink Viscosity: 6 – 7 mPa * s
- Two colors

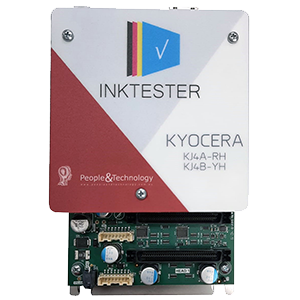

Electronic card KYOCERA KJ4A-RH
Electronic card for KYOCERA KJ4A-RH head
Printhead KYOCERA KJ4B-YH
- Compatible ink: Water
- Number of nozzles: 2,656
- Print width: 108.25 millimeters
- Standard resolution: 600 × 600 dots per inch
- Maximum Drive Frequency: 40 KHz.
- Dimensions: (Width * Height * Length): 200x30x60.9 mm
- Net weight: 438 grams
- Maximum printing speed: 100 meters per minute
- Drop volumes: 5, 7 and 12 pL.
- Optimum Ink Viscosity: 5 – 6 mPa * s
Electronic card KYOCERA KJ4B-YH
Electronic card for KYOCERA KJ4B-YH head
Printhead KYOCERA KJ4B-1200
- Compatible ink: Water
- Number of nozzles: 5,312
- Print width: 112.44 millimeters
- Standard resolution: 1200 × 1200 dots per inch
- Maximum Drive Frequency: 64 KHz.
- Dimensions: (Width * Height * Length): 200x45x71.6 mm
- Net weight: 760 grams
- Maximum printing speed: 80 meters per minute
- Drop volumes: 1.5, 3 and 5 pL.
- Optimum Ink Viscosity: 5.5 – 6 mPa * s
Electronic card KYOCERA KJ4B-1200
Electronic card for KYOCERA KJ4B-1200 head

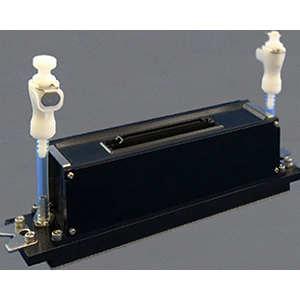

Printhead KYOCERA KJ4C-0360
- Compatible ink: Oil
- Number of nozzles: 1,568
- Print width: 109 millimeters
- Standard resolution: 360 × 360 dots per inch
- Maximum Drive Frequency: 12 KHz.
- Dimensions: (Width * Height * Length): 200x39x54 mm
- Net weight: 407 grams
- Maximum printing speed: 50 meters per minute
- Drop volumes: between 15 to 84 pL.
- Optimum Ink Viscosity: 10 – 18 mPa * s
Electronic card KYOCERA KJ4C-0360
Electronic card for KYOCERA KJ4C-0360 head

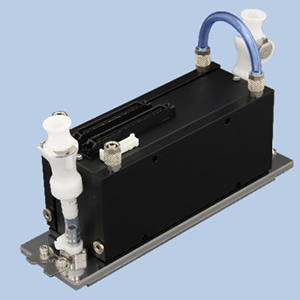

Printhead KJ4B-EX1200-RC
- Compatible ink: Water
- Number of nozzles: 5,312
- Print width: 108.3 milimeters
- Standard resolution: 1.200 dots per inch
- Maximum Drive Frecuency: 80 kHz
- Dimensions (Width * Height * Length): 200×58,5×79,3 milimeters
- Net weight: —
- Maximum printing speed: —
- Drop volumes: 2 y 4 pl.
- Optimum Ink Viscosity: —
Electronic card KYOCERA KJ4B-EX1200-RC
Electronic card for KYOCERA KJ4B-EX1200-RC head
