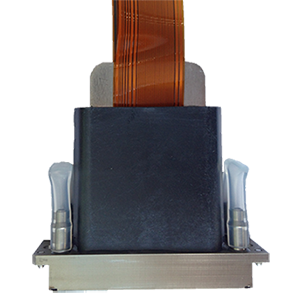

Printhead RICOH MH2420
- Compatible ink: Water based, Solvent based, Oil based, UV
- Number of injectors: 384 (2 × 192)
- Print width: 32.4 millimeters
- Jet frequency: 30 kHz in binary and 20 kHz in grayscale
- Dimensions (Width * Height * Length): 63×62.4×16.2 millimeters
- Net weight: 73 grams
- Drop volumes: 7 peak liters in binary and between 7 and 35 peak liters depending on the ink
- Typical ink viscosity 10-12 mPa * s
- Gray scale: 4 levels
- Number of inks: 2

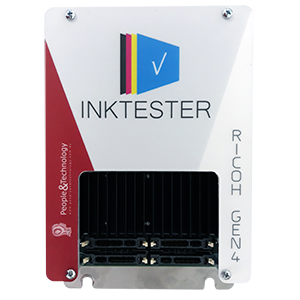

Electronic card RICOH MH2420
Electronic card for RICOH MH2420 head

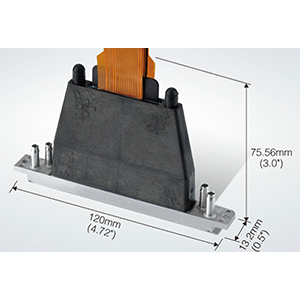

Printhead RICOH MH2620
- Compatible ink: Water based, Solvent based, UV, Others
- Number of nozzles: 384 (2 x 192)
- Print width: 64.9 millimeters
- Jetting Frequency: 30 kHz for 15 peak liters. 20 kHz for 30 liter liters. 14 kHz for 45 peak liters.
- Dimensions (Width * Height * Length): 120×75.56×13.2 millimeters
- Net weight: 108 grams
- Typical ink viscosity 11-13 mPa * s
- Gray scale: 4 levels
- Number of inks: 2
Electronic card RICOH MH2620
Electronic card for RICOH MH2620 head
Printhead RICOH MH2820
- Compatible ink: Water based, Solvent based, UV, Others
- Number of nozzles: 384 (2 x 192)
- Print width: 64.9 millimeters
- Jetting Frequency: 30 kHz for 27 peak liters. 20 kHz for 54 liter liters.
- Dimensions (Width * Height * Length): 120×75.56×13.2 millimeters
- Net weight: 108 grams
- Typical ink viscosity 11-13 mPa * s
- Gray scale: 3 levels
- Number of inks: 2
Electronic card RICOH MH2820
Electronic card for RICOH MH2820 head
Printhead RICOH MH5220
- Compatible ink: UV
- Number of nozzles: 1280 (4 x 320)
- Print width: 54.1 millimeters
- Jetting Frequency: 30 kHz
- Dimensions (Width * Height * Length): 89×64.2×24.7 millimeters
- Net weight: 147 grams cable included
- Drop volume: 2.5 pico liters in binary mode. 2,5 to 9 pico liters depending on the ink.
- Typical ink viscosity 10-12 mPa * s
- Gray levels: 4
- Number of inks: 2
Electronic card RICOH MH5220
Electronic card for RICOH MH5220 head

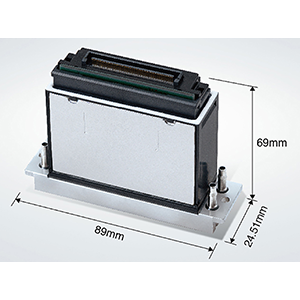

Printhead RICOH MH5320
- Compatible ink: Water based, Solvent based, UV, Others
- Number of nozzles: 1280 (4 x 320)
- Print width: 54.1 millimeters
- Jetting Frequency: 50 kHz for 3 levels grey scale. 40 kHz for 4 levels grey scale
- Dimensions (Width * Height * Length): 89×66,3×24,51 millimeters
- Net weight: 228 grams including cable
- Typical ink viscosity 10-12 mPa * s
- Number of inks: 2
Electronic card RICOH MH5320
Electronic card for RICOH MH5320 head
Printhead RICOH MH5320A
- Compatible ink: Water based, Solvent based, UV, Others
- Number of nozzles: 1280 (4 x 320)
- Print width: 54.1 millimeters
- Jetting Frequency: 50 kHz for 3 levels grey scale. 40 kHz for 4 levels grey scale.
- Dimensions (Width * Height * Length): 89×66,3×24,51 millimeters
- Net weight: 228 grams including cable
- Typical ink viscosity 10-12 mPa * s
- Number of inks: 4
Electronic card RICOH MH5320A
Electronic card for RICOH MH5320A head
Printhead RICOH MH5340
- Compatible ink: Water based, Solvent based, UV, Others
- Number of nozzles: 1280 (4 x 320)
- Print width: 54.1 millimeters
- Jetting Frequency: 50 kHz for 3 levels grey scale. 40 kHz for 4 levels grey scale
- Dimensions (Width * Height * Length): 89×66,3×24,51 millimeters
- Net weight: 228 grams including cable
- Typical ink viscosity 10-12 mPa * s
- Number of inks: 4
Electronic card RICOH MH5340
Electronic card for RICOH MH5340 head

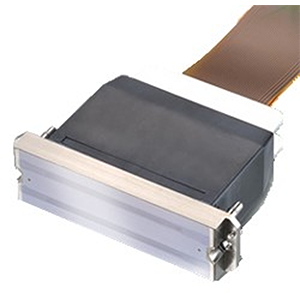

Printhead RICOH MH5420
- Compatible ink: Oil based, UV, Solvent based, Water based, Others
- Number of nozzles: 1280 (4 × 320 channels). staggered
- Print width: 54.1 millimeters
- Jetting Frequency:
- Binary 30 KHz
- Gray scale 20 KHz
- Dimensions (Width * Height * Length): 89x69x24.51 mm
- Net weight: 155 grams
- Drop volume:
- Binary 7 pico liters
- Grey-scale mode: from 7 to 35 pico liters *depending on the ink
- Viscosity range: 10-12 mPa * s
- Grey-scale: 4 levels
- Number of inks ports: 2 x dual ports
- Native resolution: 600 DPI
Electronic card RICOH MH5420
Electronic card for RICOH MH5420 head
Printhead RICOH MH5421
- Compatible ink: Aqueous ink
- Number of nozzles: 1280 (4 × 320 channels). staggered
- Print width: 54.1 millimeters
- Jetting Frequency: 30 KHz
- Dimensions (Width * Height * Length): 89x69x24.51 mm
- Net weight: 155 grams
- Drop volume: 7 / 14 / 21 pico liters *depending on the ink
- Viscosity range: 11 mPa * s
- Grey-scale: 4 levels (depending on the ink characteristic)
- Number of inks ports: 2 x dual ports
- Native resolution: 600 DPI
Electronic card RICOH MH5421
Electronic card for RICOH MH5421 head

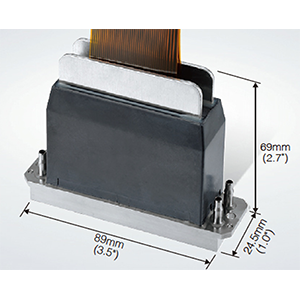

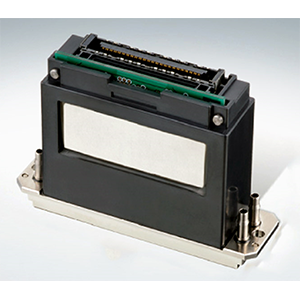

Printhead RICOH MH5421F
- Compatible ink: UV, Solvent, Aqueous, others
- Number of nozzles: 1280 (4 × 320 channels). staggered
- Print width: 54.1 millimeters
- Jetting Frequency: 30 KHz
- Dimensions (Width * Height * Length): 89x69x24.51 mm
- Net weight: 149 grams
- Drop volume: 7 / 14 / 21 pico liters *depending on the ink
- Viscosity range: 11 mPa * s
- Grey-scale: 4 levels (depending on the ink characteristic)
- Number of inks ports: 2 x dual ports
- Native resolution: 600 DPI
Electronic card RICOH MH5421F
Electronic card for RICOH MH5421F head
Printhead RICOH MH5421MF
- Compatible ink: UV, Solvent, Aqueous, others
- Number of nozzles: 1280 (4 × 320 channels). staggered
- Print width: 54.1 millimeters
- Jetting Frequency: 30 KHz
- Dimensions (Width * Height * Length): 89x69x24.51 mm
- Net weight: 149 grams
- Drop volume: 7 / 14 / 21 pico liters *depending on the ink
- Viscosity range: 6 mPa * s
- Grey-scale: 4 levels (depending on the ink characteristic)
- Number of inks ports: 2 x dual ports
- Native resolution: 600 DPI
Electronic card RICOH MH5421MF
Electronic card for RICOH MH5421MF head
Printhead RICOH MH5440
- Compatible ink: Oil based, UV, Solvent based, Water based, Others
- Number of nozzles: 1280 (4 × 320 channels). staggered
- Print width: 54.1 millimeters
- Jetting Frequency:
- Binary 30 KHz
- Gray scale 20 KHz
- Dimensions (Width * Height * Length): 89x69x24.51 mm
- Net weight: 155 grams
- Drop volume:
- Binary 7 pico liters
- Grey-scale mode: from 7 to 35 pico liters *depending on the ink
- Viscosity range: 10-12 mPa * s
- Grey-scale: 4 levels
- Number of inks ports: 4 x dual ports
- Native resolution: 600 DPI
Electronic card RICOH MH5440
Electronic card for RICOH MH5440 head

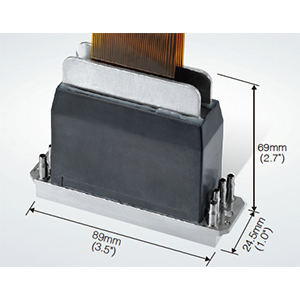

Printhead RICOH MH5441
- Compatible ink: Aqueous ink
- Number of nozzles: 1280 (4 × 320 channels). staggered
- Print width: 54.1 millimeters
- Jetting Frequency: 30 KHz
- Dimensions (Width * Height * Length): 89x69x24.51 mm
- Net weight: 155 grams
- Drop volume: 7 / 14 / 21 pico liters *depending on the ink
- Viscosity range: 11 mPa * s
- Grey-scale: 4 levels (depending on the ink characteristic)
- Number of inks ports: 4 x dual ports
- Native resolution: 600 DPI
Electronic card RICOH MH5441
Electronic card for RICOH MH5441 head

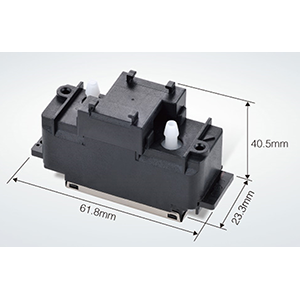

Printhead RICOH GH2220
- Compatible ink: Water based, Solvent based
- Number of nozzles: 384
- Print width: 32.4 millimeters
- Jetting Frequency: 30 kHz in binary and 24 kHz in grayscale
- Dimensions (Width * Height * Length): 61.8×40.5×23.3 millimeters
- Net weight: 36 grams
- Drop volumes: 3-5 peak liters in binary and 21 peak liters in grayscale depending on the ink
- Typical ink viscosity 8 mPa * s
- Gray scale: 4 levels
- Number of inks: 2
Electronic card RICOH GH2220
