Industrial printheads XAAR

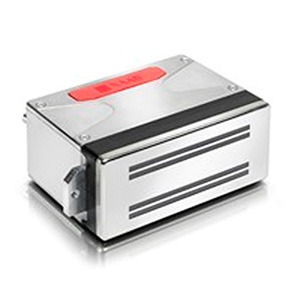

Printhead Xaar 2001+ GS6C

  • Active nozzles: 2000
  • Print swathe width: 70.5 mm
  • Number of rows: 4
  • Number of fluid paths: 1 or 2
  • Nozzle density single colour (nozzles per inch): 720 npi
  • Nozzle density dual colour (nozzles per inch): 360 npi
  • Ink type: Oil-based
  • Drop volume*: 6 to 42 pL
  • Number of grey levels*: Up to 8
  • Total ink laydown at 25m/min*: 21 g/m2
  • Total ink laydown at 50m/min*: 10.5 g/m2
  • Dimensions (WxDxH): 132x50x105 mm

* Dependent on ink used and system integration

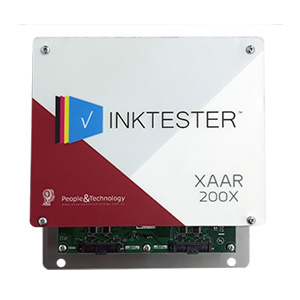

Electronic card Xaar 2001+ GS6C

ELECTRONIC CARD P&T SET XAAR 2001 GS6C/GS12C/GS40C

Printhead Xaar 2001+ GS12C

  • Active nozzles: 2000
  • Print swathe width: 70.5 mm
  • Number of rows: 4
  • Number of fluid paths: 1 or 2
  • Nozzle density single colour (nozzles per inch): 720 npi
  • Nozzle density dual colour (nozzles per inch): 360 npi
  • Ink type: Oil-based
  • Drop volume*: 12 to 84 pL
  • Number of grey levels*: Up to 8
  • Total ink laydown at 25m/min*: 41 g/m2
  • Total ink laydown at 50m/min*: 20.5 g/m2
  • Dimensions (WxDxH): 132x50x105 mm

* Dependent on ink used and system integration.

Electronic card Xaar 2001+ GS12C

ELECTRONIC CARD P&T SET XAAR 2001 GS6C/GS12C/GS40C

Printhead Xaar 2001+ GS40C

  • Active nozzles: 2000
  • Print swathe width: 70.5 mm
  • Number of rows: 4
  • Number of fluid paths: 1 or 2
  • Nozzle density single colour (nozzles per inch): 720 npi
  • Nozzle density dual colour (nozzles per inch): 360 npi
  • Ink type: Oil-based
  • Drop volume*: 40 to 160 pL
  • Number of grey levels*: Up to 5
  • Total ink laydown at 25m/min*: 78 g/m2
  • Total ink laydown at 50m/min*: 39 g/m2
  • Dimensions (WxDxH): 132x50x105 mm

* Dependent on ink used and system integration

Electronic card Xaar 2001+ GS40C

ELECTRONIC CARD P&T SET XAAR 2001 GS6C/GS12C/GS40C

ELECTRONIC CARD P&T SET XAAR 2001 GS6C/GS12C/GS40C

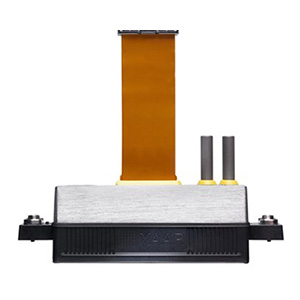

Printhead Xaar 1003 GS6C

  • Active nozzles: 1000
  • Print swathe width: 70.5 mm
  • Number of rows: 2
  • Nozzle pitch (interleaved): 70.5 µm
  • Drop velocity*: 6 m/s
  • Nozzle density (nozzles per inch): 360 npi
  • Printhead weight (dry): 144 g
  • Ink type: Solvent, UV, Oil
  • Drop volume* (at 8 levels): 6 to 42 pL
  • Number of grey levels*: 8
  • Typical firing frequency*: 6 kHz
  • Dimensions (WxDxH): 125x30x60 mm

* Dependent on ink used and system integration

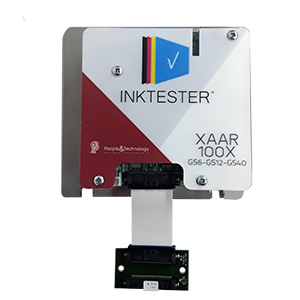

Electronic card Xaar GS6C

ELECTRONIC CARD P&T SET XAAR GS6C/GS12C/GS40C
ELECTRONIC CARD P&T SET XAAR GS6C/GS12C/GS40C

Printhead Xaar 1003 GS12C

  • Active nozzles: 1000
  • Print swathe width: 70.5 mm
  • Number of rows: 2
  • Nozzle pitch (interleaved): 70.5 µm
  • Drop velocity*: 6 m/s
  • Nozzle density (nozzles per inch): 360 npi
  • Printhead weight (dry): 144 g
  • Ink type: Solvent, UV, Oil
  • Drop volume* (at 8 levels): 12 to 84 pL
  • Number of grey levels*: 8
  • Typical firing frequency*: 6 to 12 kHz

* Dependent on ink used and system integration

Electronic card Xaar GS12C

ELECTRONIC CARD P&T SET XAAR GS6C/GS12C/GS40C
ELECTRONIC CARD P&T SET XAAR GS6C/GS12C/GS40C

Printhead Xaar 1003 GS40C

  • Active nozzles: 1000
  • Print swathe width: 70.5 mm
  • Number of rows: 2
  • Nozzle pitch (interleaved): 70.5 µm
  • Drop velocity*: 5 m/s
  • Nozzle density (nozzles per inch): 360 npi
  • Printhead weight (dry): 144 g
  • Ink type: UV, Oil
  • Drop volume* (at 8 levels): 40 to 160 pL
  • Number of grey levels*: 5
  • Typical firing frequency*: 6 kHz
  • Dimensions (WxDxH): 125x30x60 mm

* Dependent on ink used and system integration

Electronic card Xaar GS40C

ELECTRONIC CARD P&T SET XAAR GS6C/GS12C/GS40C
ELECTRONIC CARD P&T SET XAAR GS6C/GS12C/GS40C
