Industrial printheads TOSHIBA

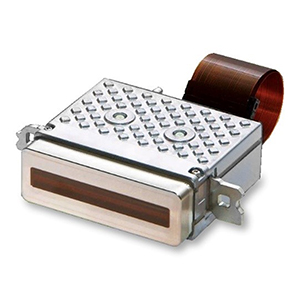

Printhead TOSHIBA CF1B

  • Ink type: UV-curing & oil-based
  • Nozzles: 636
  • Print width: 53.7 millimeters
  • Frequency: 4.97 KHz (7 drops)
  • Dimensions (Width * Height * Length): 26x79x94.1 mm
  • Net weight: 161 grams
  • Drop volumes: from 6 to 42 pico liters
  • Grayscale: 8 levels (0 to 7 drops)
  • Number of inks: 1
  • Nozzle resolution: 300 NPI
  • Re-circulation: YES

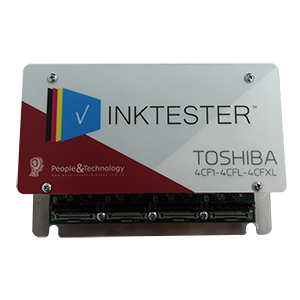

Electronic card TOSHIBA CF1B

Electronic card P&T set Toshiba

Electronic card P&T set Toshiba

Printhead TOSHIBA CF1BL

  • Ink type: UV-curing & oil-based
  • Nozzles: 636
  • Print width: 53.7 millimeters
  • Frequency: 4.8 KHz (7 drops)
  • Dimensions (Width * Height * Length): 26x79x94.1 mm
  • Net weight: 161 grams
  • Drop volumes: from 57 to 80 pico liters
  • Grayscale: 4 levels (0, 5, 6, 7 drops)
  • Number of inks: 1
  • Nozzle resolution: 300 NPI
  • Re-circulation: YES

Electronic card TOSHIBA CF1BL

Electronic card P&T set Toshiba

Electronic card P&T set Toshiba

Printhead TOSHIBA CF1BXL

  • Ink type: UV-curing & oil-based
  • Nozzles: 636
  • Print width: 53.7 millimeters
  • Frequency: 4.8 KHz (6 drops)
  • Dimensions (Width * Height * Length): 26x79x94.1 mm
  • Net weight: 161 grams
  • Drop volumes: from 36 to 180 pico liters
  • Grayscale: 7 levels (0 to 6 drops)
  • Number of inks: 1
  • Nozzle resolution: 300 NPI
  • Re-circulation: YES

Electronic card TOSHIBA CF1BXL

Electronic card P&T set Toshiba

Electronic card P&T set Toshiba

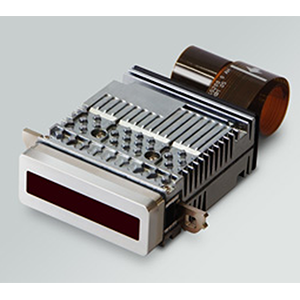

Printhead TOSHIBA CF3

  • Ink type: UV-curing & oil-based
  • Nozzles: 1278
  • Print width: 53.95 millimeters
  • Frequency: 9,2 KHz (5 drops)
  • Dimensions (Width * Height * Length): 29.3×100.7×96.7 mm
  • Net weight: 285 grams
  • Drop volumes: 20 pico liters / 5 drops
  • Grayscale: 6 levels (0 to 5 drops)
  • Number of inks: 1
  • Nozzle resolution: 600 NPI
  • Re-circulation: YES

Electronic Card TOSHIBA CF3

Electronic card P&T set Toshiba

Electronic card P&T set Toshiba

Printhead TOSHIBA CF3R

  • Ink type: UV-curing & oil-based
  • Nozzles: 639
  • Print width: 53.91 millimeters
  • Frequency: 9,2 KHz (5 drops)
  • Dimensions (Width * Height * Length): 31.3×100.7×96.7 mm
  • Net weight: 285 grams
  • Drop volumes: 20 pico liters / 5 drops
  • Grayscale: 6 levels (0 to 5 drops)
  • Number of inks: 2
  • Nozzle resolution: 300 NPI
  • Re-circulation: YES

Electronic Card TOSHIBA CF3R

Electronic card P&T set Toshiba

Electronic card P&T set Toshiba
