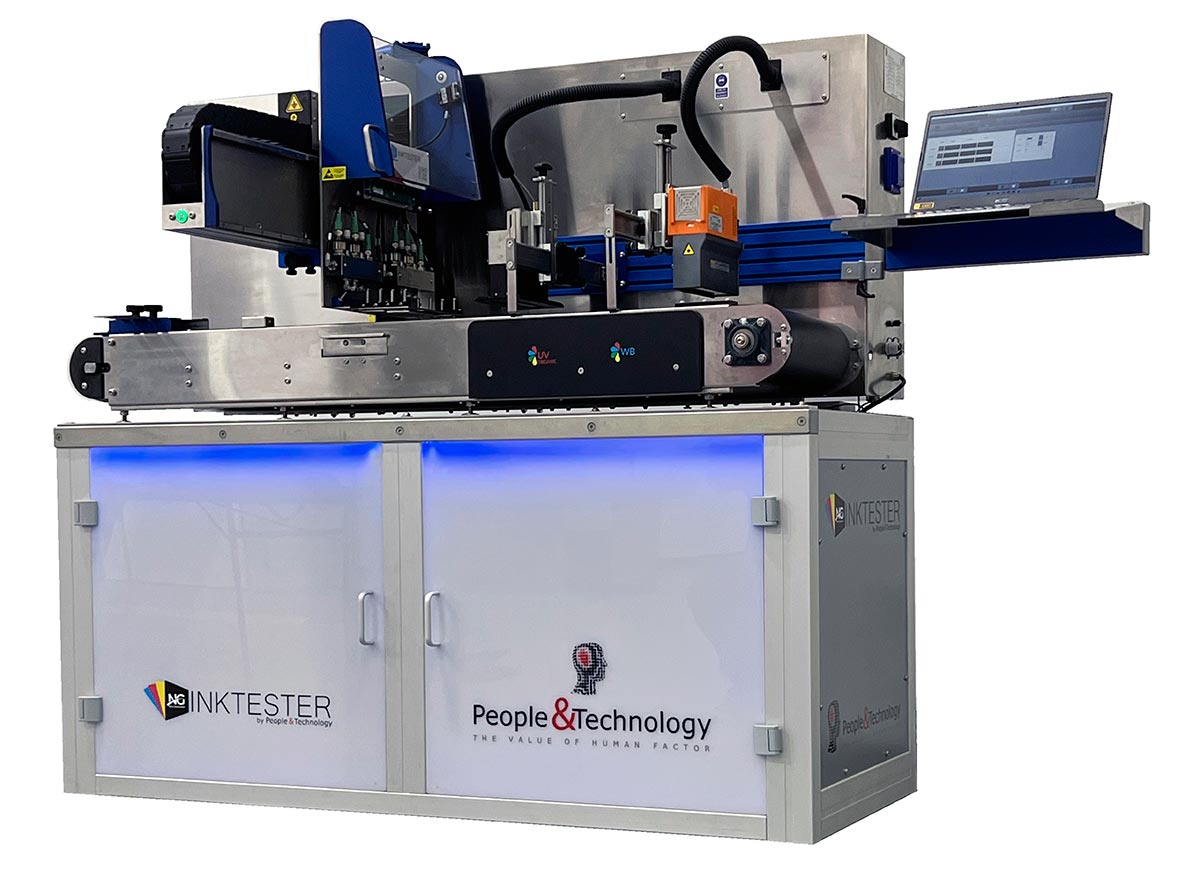

INKTESTER NG MACHINE

INKTESTER NG

INKTESTER NG Digital increases the capacity to test and develop products, applied by Inkjet. The ability to handle two inks at the same time doubles the INKTESTER’s versatility.

This machine can be your indispensable tool in quality control, since it allows you to compare two different inks, printing at the same time, on the same substrate and under the exact same conditions.

KEY POINTS OF INKTESTER NG DIGITAL:

  • INKTESTER NG Digital works with the main manufacturers of industrial printheads SEIKO, XAAR, DIMATIX, TOSHIBA, KONICA MINOLTA, RICOH, KYOCERA, DURST
  • INKTESTER NG Digital allows handling different types of inks: Water-based ink, Oil-based ink, Solvent-based ink, UV ink, Soluble salts, Varnishes, Metallic ink, Coatings, Latex and others.
  • INKTESTER NG Digital, allows you to print directly on any type of substrate: Ceramic, Paper, Cardboard, Wood, Plastic, Textile, Glass, Leather, Cork and many more.
  • INKTESTER NG Digital allows independent DIGITAL control for each ink system, of all the parameters of the ink system.
  • INKTESTER NG Digital offers as accessories the possibility of integrating UV LED lamps for pining or curing or NIR drying lamps for water-based inks. There are different models, sizes and lamp powers according to needs.
  • INKTESTER NG Digital offers the possibility of being combined with the majority of high-speed cameras (DROPWATCHER), to visualize the formation of drops on a head. Compatible with Logo meteorDropWatcher, JETXPERT and others.
  • INKTESTER NG Digital supports multiple head configurations; in row, in battery, in overlap, rotation to be able to print at any angle between 0º and 90º.
  • INKTESTER NG Digital offers the possibility of installing a micrometer KIT, for a completely precise rotational adjustment of the head.
  • INKTESTER NG Digital allows you to work with a maximum printing speed of up to 50 meters per minute.
  • INKTESTR NG Digital allows you to work with only 350cc of ink to carry out a test.
  • INKTESTER NG Digital is ready to change the head model or brand in less than two minutes.
  • INKTESTER NG Digital allows you to create and save your own recipes for the values ​​of the ink system, depending on the head and type of ink, thus allowing you to reproduce the same values ​​in future uses.
  • INKTESTER NG Digital allows the user to control all the parameters, to simulate a single-pass printer: Voltage, Waveform, Binary or gray scale, image, web speed, temperature, meniscus, etc.
  • INKTESTER NG Digital incorporates an illuminated support table with large cabinets, to store everything related to the INKTESTER NG Digital.
  • INKTESTER NG Digital includes a new support for the computer, adjustable in height and rotation, for greater comfort.
  • INKTESTER NG Digital allows you to print directly on pieces up to 20 centimeters high.
